Streacom BC1 MINI Open Benchtable
* In stock.

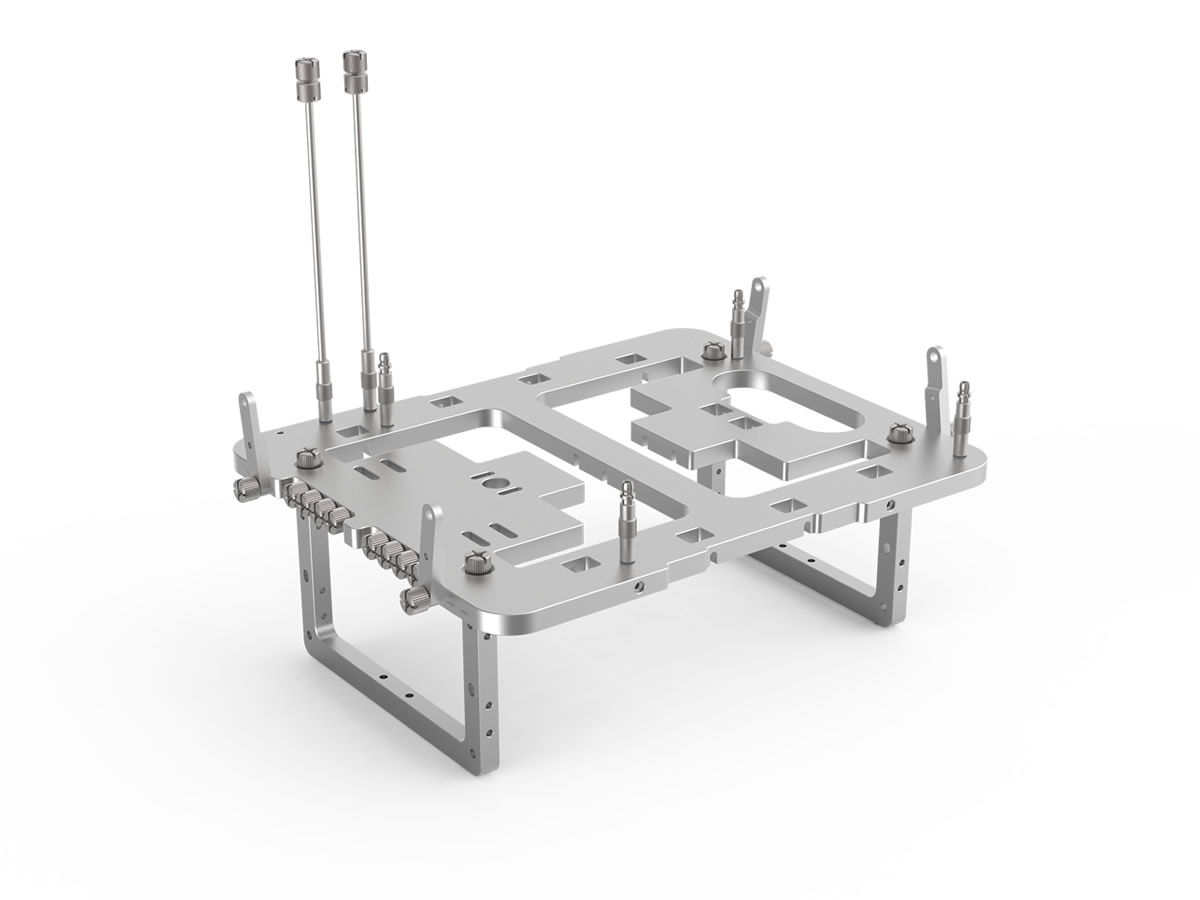

The BC1 MINI as the name suggests is a small version of the award winning BC1 Open Benchtable. We took everything great about the BC1 and shrunk it down to perfectly suit ITX and SFF PC builds.
It may be smaller but is still shares the same 8mm thick precision machined and anodized aluminum construction which offers fantastic rigidity while also being extremely lightweight. With the reduced size it only weighs 805g but still manages to incorporate the same ingenious self contained design which makes it incredibly portable, versatile and easy to store.
While overclocking on an ITX platform is not exactly the “done thing”, the BC1 MINI does allow for it, and lets you build an incredibly compact, robust open small form fact rig or test bench.

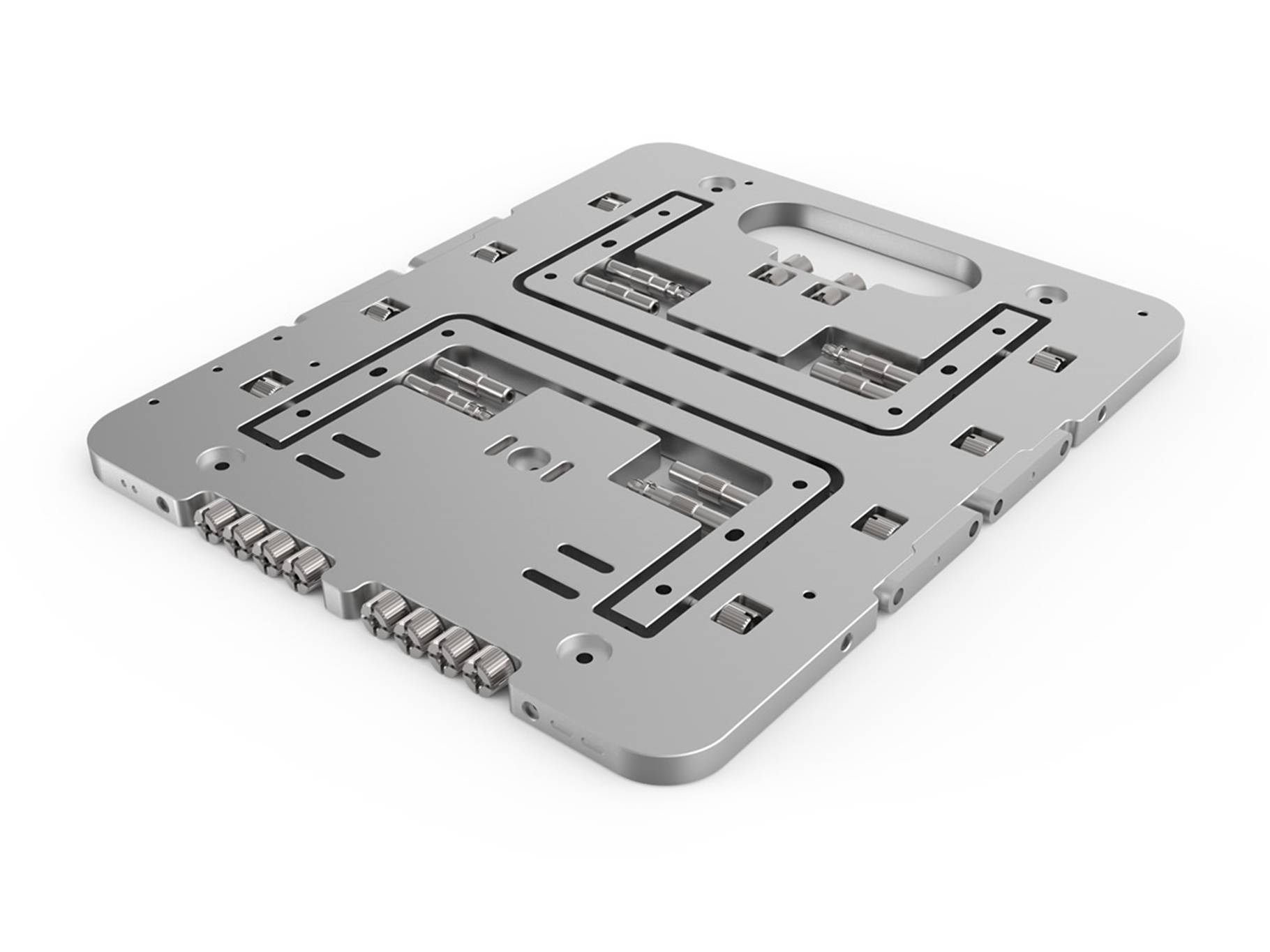

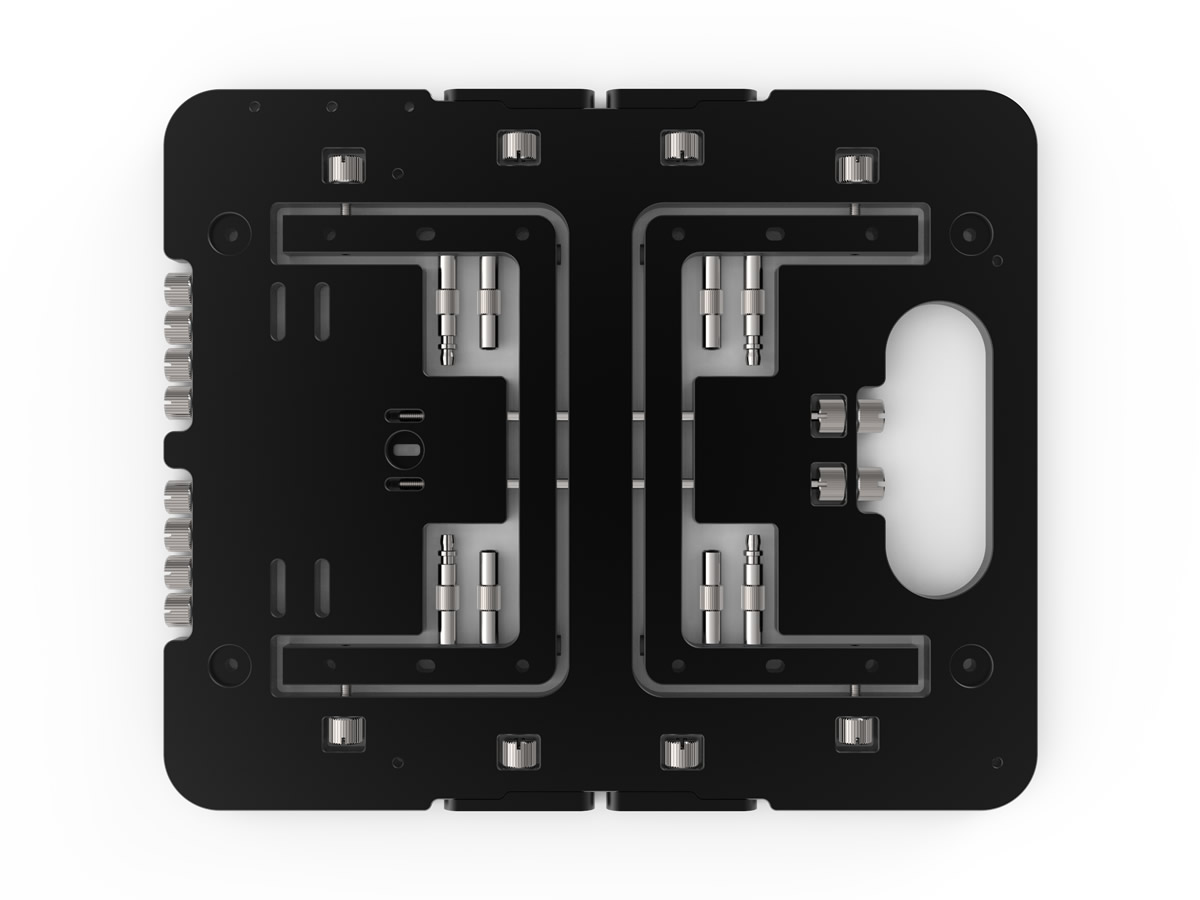

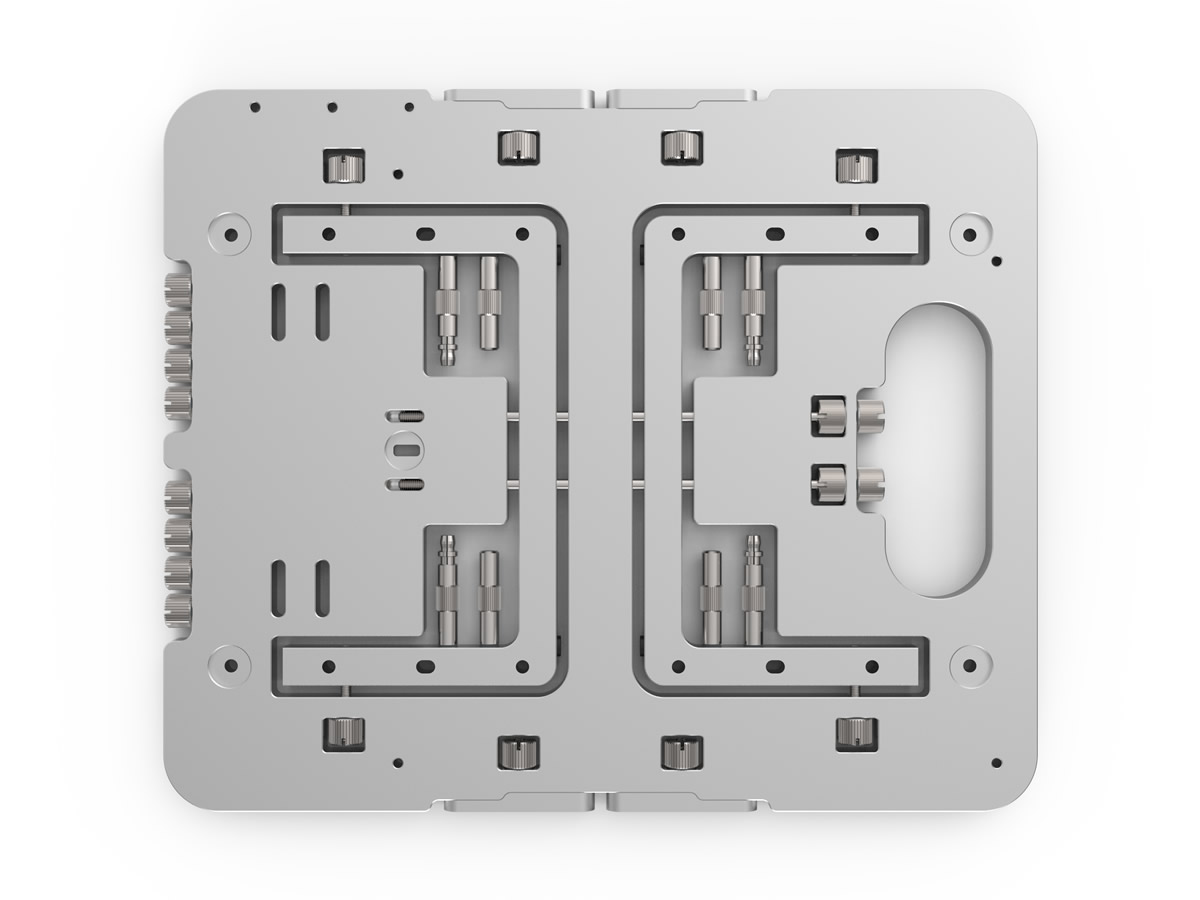

The entire BC1 MINI is made of precision machined, anodized aluminum which offers fantastic rigidity while also being extremely lightweight. The body also features an integrated carry handle and has been cleverly designed to incorporate the legs, standoffs, and brackets which all seamlessly stow within. This means no moving (or indeed rattling) parts when in transit.
The entire product uses thumbscrews meaning you won’t even need to bring your screwdriver with you. Motherboard standoffs include traditional and convenient pushpin options. The BC1 MINI supports Mini ITX form factor motherboards.
| Technical Specifications | |
|---|---|
| Body Material: | Premium Grade (5052) Aluminum Alloy |
| Screw Material: | SS304 Steel Alloy |
| Available Colors: | Silver, Red, Black – Sandblast & Anodized Finish |
| Motherboard Support: | Mini ITX |
| PSU Support: | SFX / SFX-L, 8kg - 17.6lbs Max |
| Drive Capacity: | Up to 2 x 2.5″ |
| Bracket Cooling Support: | 60 to 170mm, 4kg - 8.8lbs Max |
| Maximum Recommended Total Load: | 15kg - 33lbs |
| Stored Dimensions: | 230 x 190 x 8mm / (W x D x H) |
| Assembled Height: | 78mm |
| Motherboard Standoff Height: | 25mm |
| Net Weight: | 1.82Kg - 4lbs |
If you are a reseller or a system builder we offer special pricing on bulk orders of this product. Contact us at sales@quietpcusa.com or call Toll Free (877) 205-2020 for more information.
