The SWiF2-800 Quiet 80mm Cooling Fan is based on the award-winning original SWiF design, the new SWiF2 series of high-performance quiet fans takes its successful predecessor's proven qualities one step further by adding hydro-dynamic bearing as well as an unique color scheme.
The new hydro-dynamic bearing ensures whisper quiet operation and even better longevity, which is reflected in an enhanced warranty time of 60 months.
The SWiF2 series provides excellent silent performance and includes a full range of trusted Coolink quality fans, suitable for all applications inside your system.

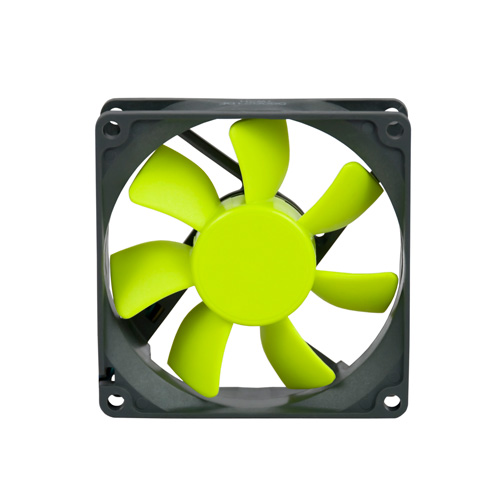

Coolink SWiF2-800 80mm Quiet Cooling Fan
SWiF2-800 Fan Features
- High-performance hydro-dynamic bearing
- Protective cable sleeving
- Includes Anti-Vibration Bolts & Screws
- Trusted Coolink quality
| SWiF2-800 Fan Specifications | |
|---|---|
| Fan size | 80x80x25 mm |
| Manufacturer | Coolink |
| Model | SWiF2-800 |
| Air volume m3h ±10% | 32.5 |
| Air volume cfm ±10% | 19.1 |
| Noise level dB(A) | 9.5 |
| Fan speed RPM ±10% | 1100 |
| Power consumption | 0.54W |
| Input current | 0.05A |
| Approximate cable length, cm | 30 |
| Life expectancy @ 25°C continuous use | 3 years |
| Bearing type | High performance Hydro-dynamic bearing |
| Fan depth | 25 mm |
| Rated voltage | 4 - 13VDC |
