Streacom DB1 Fanless Chassis
* In stock.

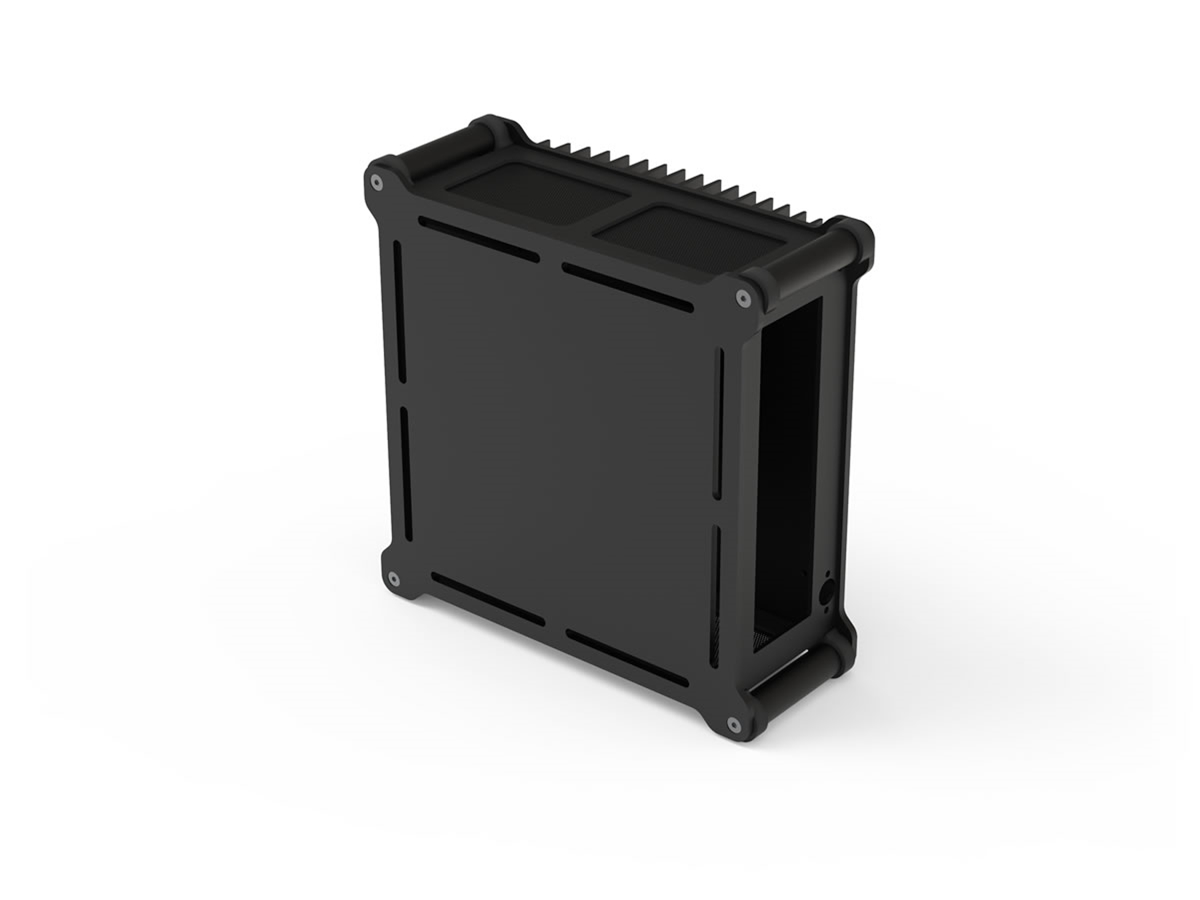

The DB1 is an ultra-compact fanless ITX case, designed to be paired with the new generation of APU/IGPUs, that is both competitively priced and built without any sacrifice on design or quality.
With a total volume less than 5l, the DB1 is our most compact fanless case but can still comfortably handle 45W of cooling, which is ideal for power-efficient systems based, especially when combined with the new generation of APU/IGPUs that deliver excellent performance/watt.

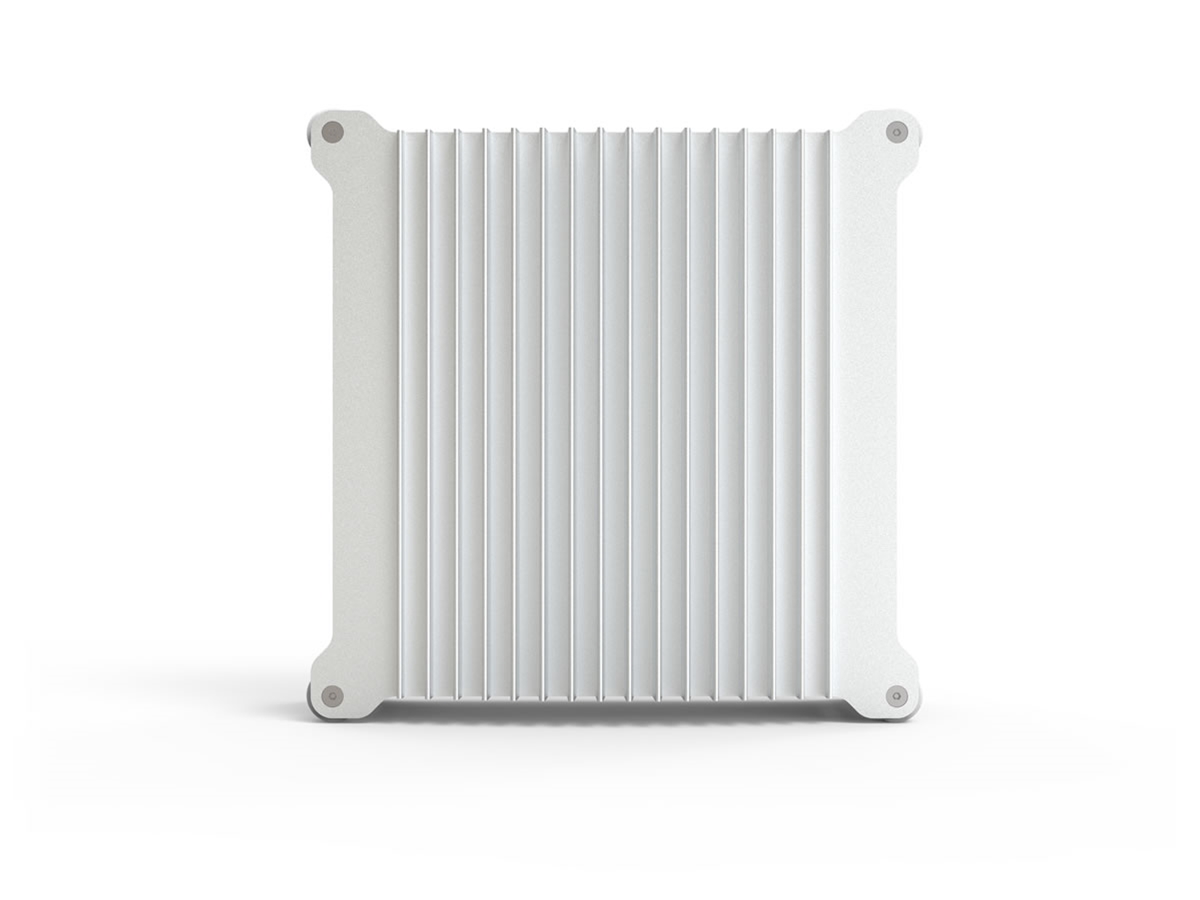

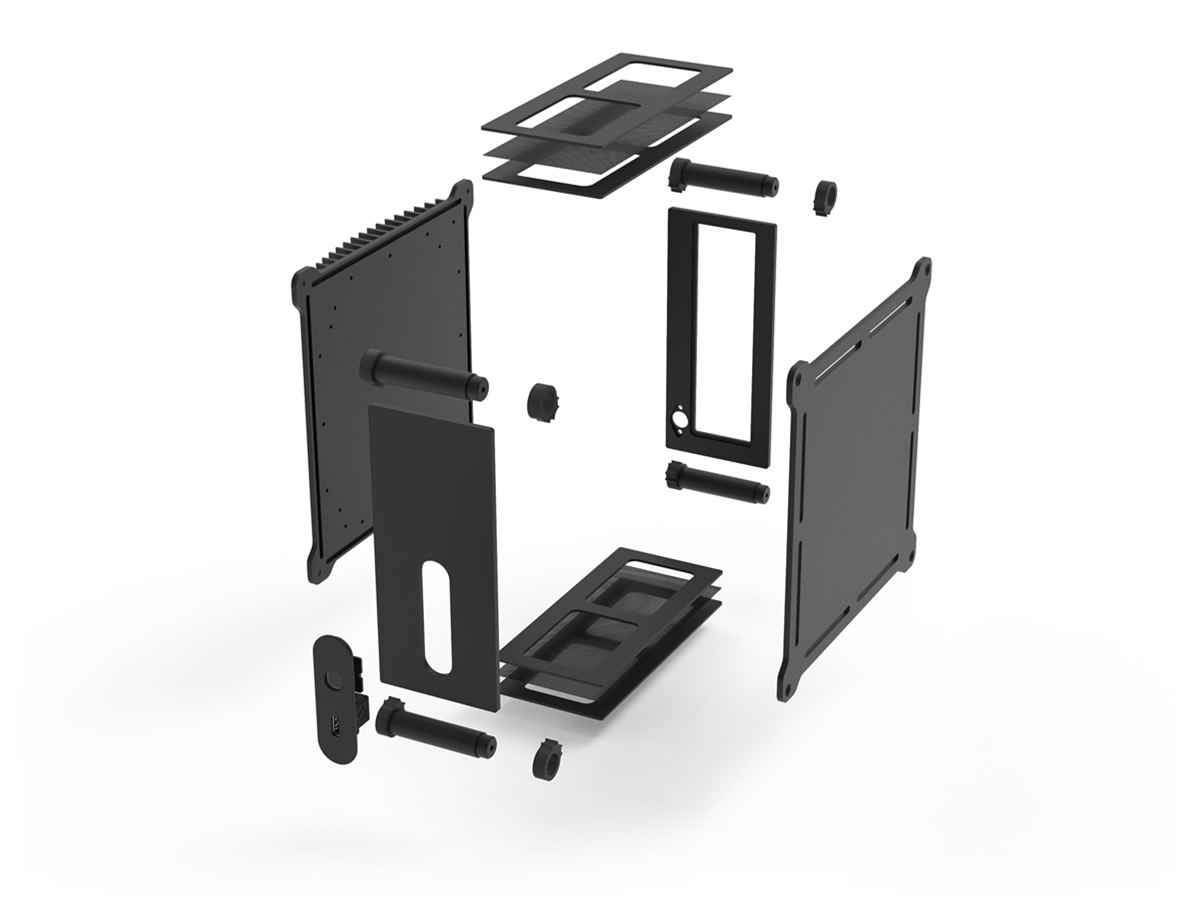

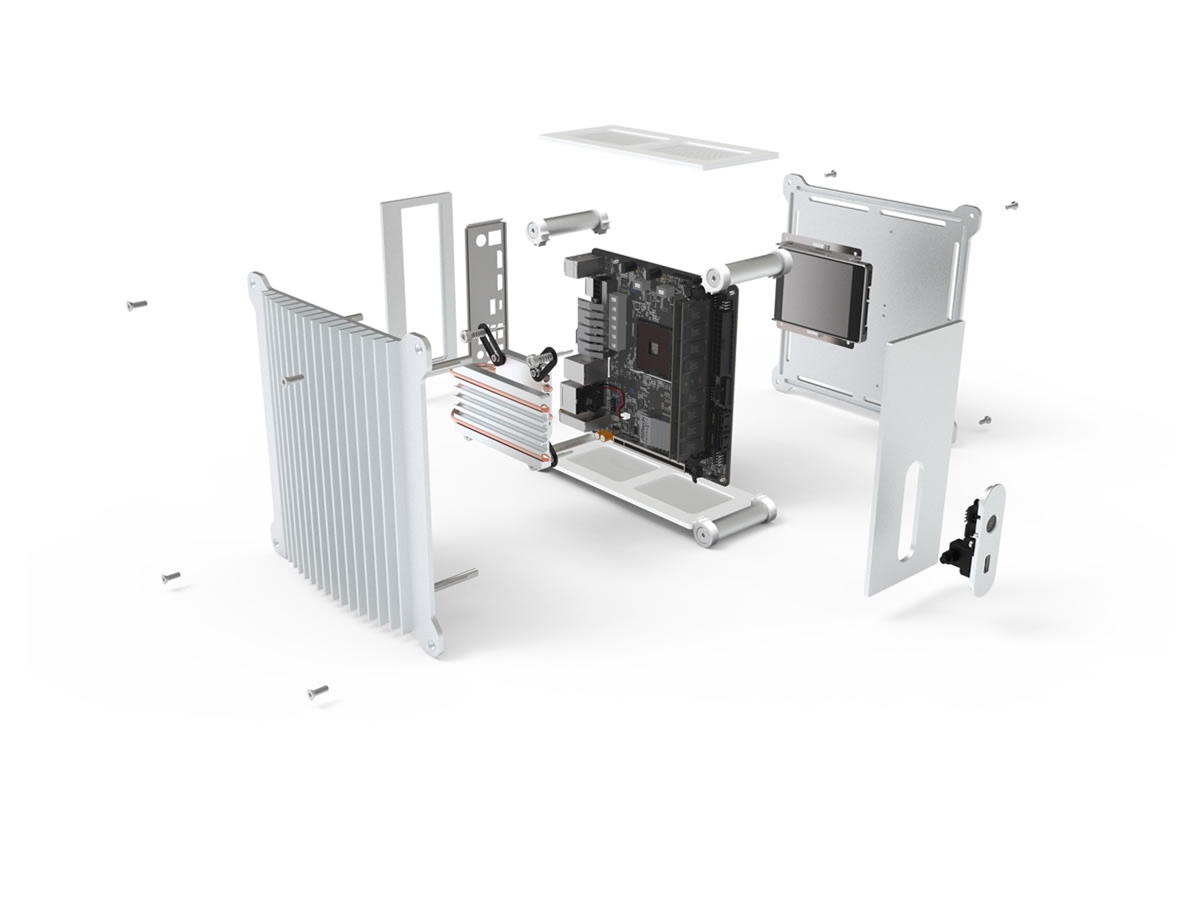

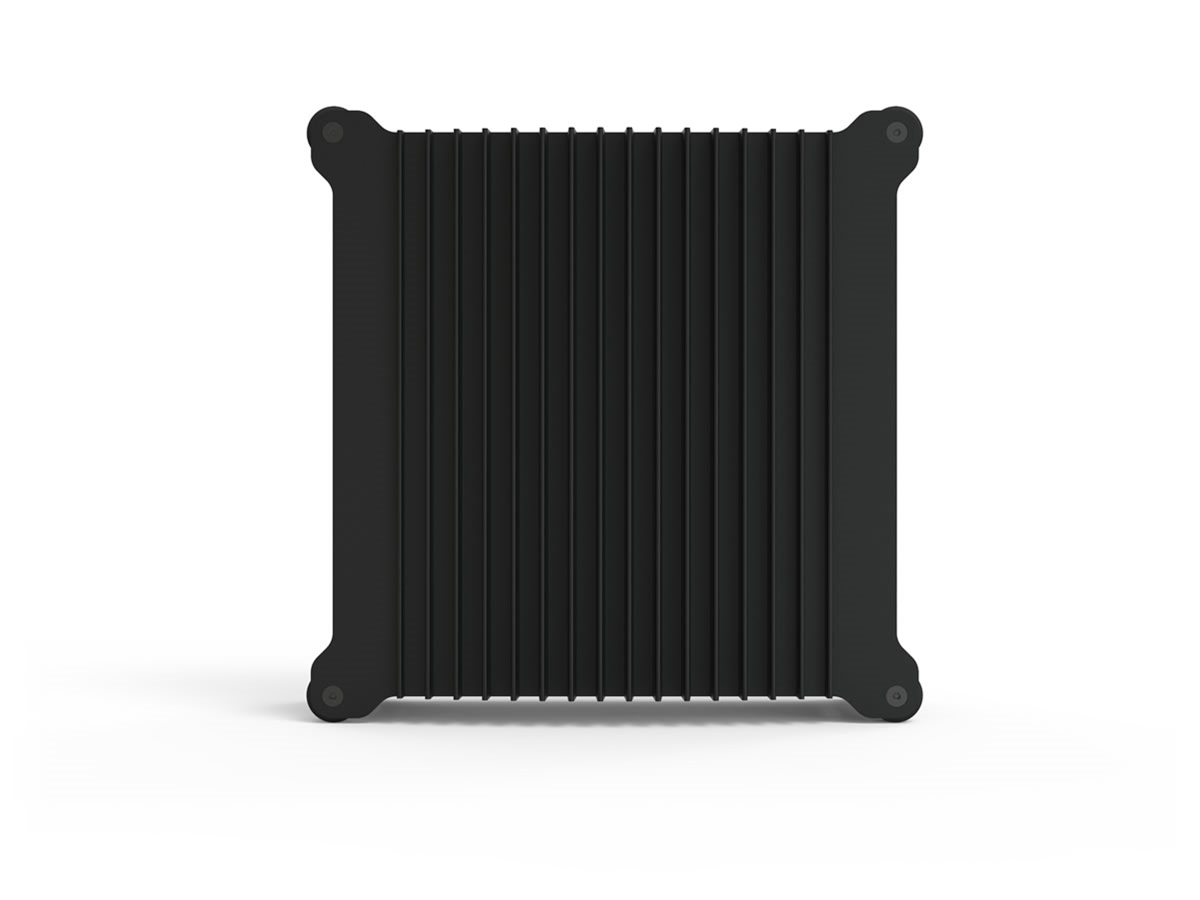

The DB1 is constructed from 4mm thick aluminum panels, a 21mm thick extruded heat sink, solid aluminum rods and is made using CNC milling and finished with sandblasted/anodized surface treatment, but despite using these premium materials, processing and finishing, is extremely competitively priced.
For more in-depth explanation on the case, please download the DB1 product introduction from the bottom of this page.
| Technical Specifications | |||
|---|---|---|---|
| Model |
DB1
|
||
| Primary Material |
Premium Grade (6063) All Aluminum
|
||
| Chassis Finish |
Silver or Black - Sandblast Finish
|
||
| Motherboard Support |
Mini-ITX
|
||
| Drive Support |
1 x 2.5" + m.2*1
|
||
| Form Factor | SFF Mini Tower | ||
| Front Port |
USB Type-A 3.0*3
|
||
| PCIe Support |
None
|
||
| CPU TDP Cooling |
45W
|
||
| PSU Support |
NanoPSU*2
|
||
| External Dimensions |
222 x 222 x 101mm (L x W x H), 4.98ℓ
|
||
| Fan Support |
None
|
||
| Net Weight |
1.8kg - 3.97lbs
|
||
| Silver |
EAN: 8718469091515
|
||
| Black |
EAN: 8718469091508
|
||
| *1 Depending on motherboard specification |
| *2 Support for all Nano type PSUs, 5.5mm Jack or 4PIN DIN socket |
| *3 Modular, can be replaced with USB Type-C 3.1 Gen2 |
Design and aesthetic is absolutely objective, but we have considered every line, every curve, every screw placement to not only be functional but also visually appealing. The devil is in the details, and while on paper one case might look very similar to another, its those small things that add up to make a vastly different product experience when its physically sitting there on your desk.
Streacom DB1 User Guide
 |
See more detailed information in the Streacom DB1 User Guide. |
