The CS-30 is a midi-sized computer case that is perfectly suited to house a fanless PC system. The main reason for this is that the case is perforated with many ventilation holes, as you can see from the image. These holes allow the hot air generated by the system to be easily and quickly removed from the case without the use of any fans! The layout out of the case is unconventional in that the power supply is installed toward the front of the case, which provides extra room to allow a full-size ATX motherboard to be installed.
NoFan CS-30 ATX Computer Case Features
- Ideal mid-size ATX PC case for a fanless/IcePipe PC
- Compatible with ATX and Micro ATX motherboards
- Excellent quality and sturdy construction
- Offers convenient front ports: Audio and dual USB 2.0
- 1 x 3½" plus 2 x 5¼" drive bays
- Can accommodate expansion cards up to 255 mm in length

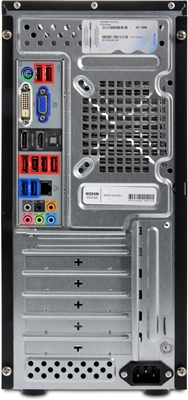

Rear layout (motherboard not included)
NoFan CS-30 ATX Computer Case Specifications
| Technical Specifications | |||||
|---|---|---|---|---|---|
| Case model |
Nofan CS-30
|
||||
| Motherboard compatibility |
ATX and Micro ATX
|
||||
| Front USB ports |
2
|
||||
| Front audio ports |
Headphone and microphone 3.5mm jacks
|
||||
| 3½ / 5¼ inch drive bays |
1 / 2
|
||||
| Dimensions (W x D x H) |
172 x 415 x 380 mm
|
||||
| Recommended power supply |
Nofan 500W Fanless PSU
|
||||
| Recommended CPU cooler |
NoFan IcePipe
|
||||
| Weight |
3.2Kg
|
||||
| Maximum PCI card length (PCB only) |
255 mm
|
||||
| Warranty |
24 months
|
||||
