Streacom 90W nanoPSU and AC/DC adapter block
* In stock.
Designed to provide silent ATX power for low power SFF computing, the Nano90 fanless PSU fits perfectly into all Streacom cases but can also be used as a silent PSU solution for any low power ATX system.

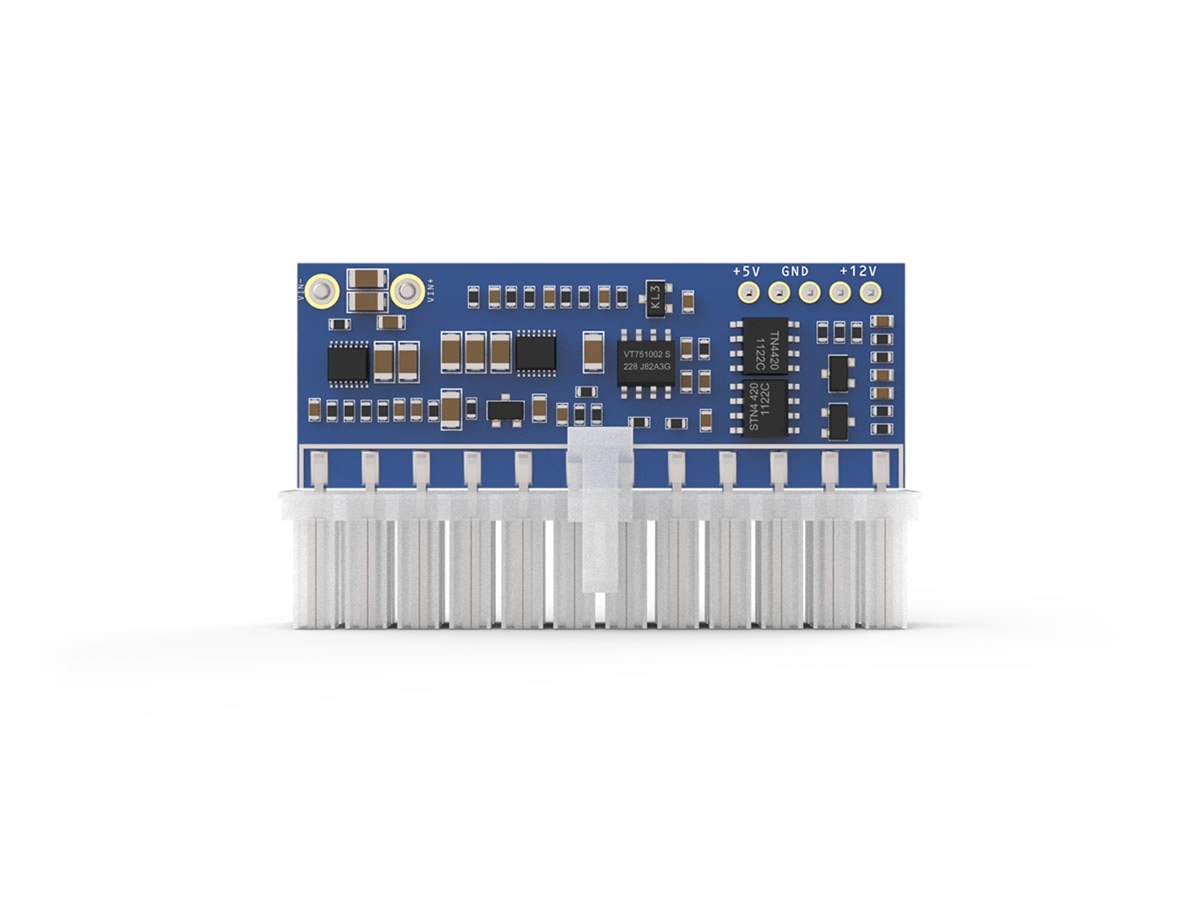

As with all NANO style power supplies, its comprised of a 2 part solution, an external AC to DC adapter and an internal DC to DC board. This allows for incredibly compact builds as the bulk of the power supply is external and can be placed somewhere discreet. It also has the benefit of reducing the amount of heat being dumped inside the case, something that is beneficial for fanless builds.
Featuring 90W* of combined total power output, under & over output power protection, short safety protection, and connections for ATX24, SATA, IDE and 4PIN CPU power, the Nano90 is the natural choice for any low power ultra-compact SFF build.
The Nano90 also fully complies with low power (LVDS, ERP/EUP) requirements and has 89% + efficiency for low environmental impact.
Features
- Very small, can build ultra-compact PC enclosures and slim server enclosures.
- Fits any motherboard equipped with 24pin ATX connector.
- 100% silent, fanless, no moving parts.
- Highly efficient design, does not produce a lot of heat.
- Ideal for low wattage processors.
| Technical Specifications | |
|---|---|
| Max Power Output | 90 watts @ 12V |
| Input Power | 12V DC, 7.5A |
| Output Connectors | 1 x 24pin ATX, 2 x SATA, 1 x Molex, 1 x 4pin ATX12V CPU |
| Input Power Cable Length | 400mm |
| PCB Dimensions (WxHxD) | 54 x 24 x18mm |
| Input Power Range | 110-240V AC |
| Power Characteristics | <0.15W No Load, <240mV Ripple, 89% + Efficiency, Active PFC >9 |
| AC Input Connector | IEC C14 (requires C13 cord) |
| Output Connector | 5.5 x 2.5mm DC Jack DC cable length: 1.2M |
| External Dimensions (LxWxH) | 140 x 58 x 32 |
| Safety Certification | CE, FCC, UL, TUV, CCC |
| Safety Features | OPP, UPP, Short-circuit Protection, Compatible with Haswell C6 & C7 Power States |
* When choosing components ensure that total power requirement is not greater than 90W. Please check individual power component requirements and total all components used in the system.
