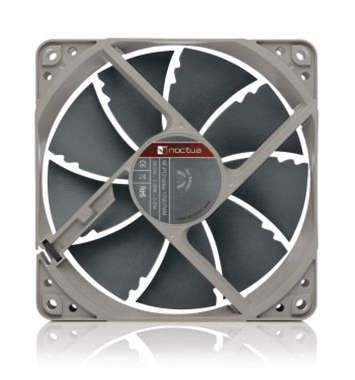

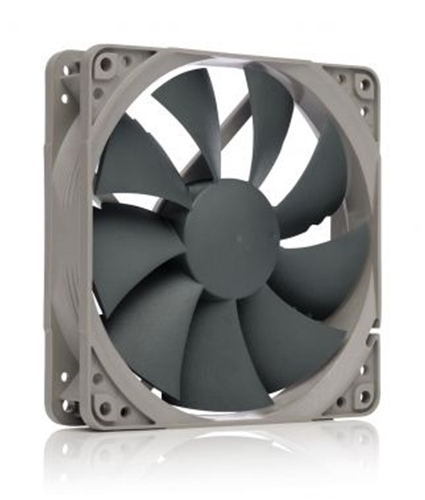

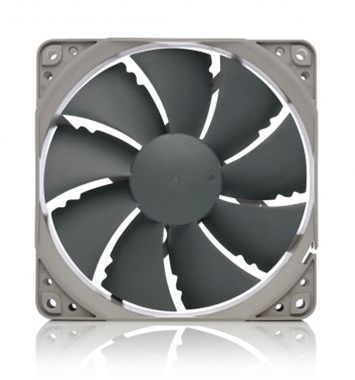

Noctua NF-P12 redux-1700 PWM Quiet Computer Cooling Fan 120mm
*In stock.
Specifically designed for pressure demanding applications such as CPU or radiator cooling, the classic NF-P12 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P12 premium fan. Its industry grade SSO bearing, over 150,000 hours MTTF rating and full 6 years manufacturer’s warranty make the NF-P12 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The performance-oriented top speed of the 1700rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.
Noctua NF-P12 redux-1700 PWM Specifications |
|
|---|---|
| Size | 120x120x25 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin hole configuration | 4-pin PWM |
| Cable length | 40cm |
| Bearing | SSO-Bearing |
| Blade Geometry | Pressure-optimized Nine Blade Design with Vortex-Control Notches |
| Rotational Speed (+/- 10%) | 1700 RPM |
| Min. rotational speed @ 20% PWM (+/-20%) | 450 RPM |
| AirFlow | 102.2 m³/h |
| Acoustical Noise | 25.1 dB(A) |
| Static Pressure | 2.83 mm H2O |
| Input Power (typical) | 0.95 W |
| Input Power (maximum) | 1.08 W |
| Input Current (typical) | 0.08 A |
| Max. Input Current | 0.09 A |
| Operating Voltage | 12 V |
| MTTF | >150,000 h |
| Scope of delivery |
|
| Warranty | 6 years |
Additional Information:
For more detailed information, please visit Noctua’s website.
If you are a reseller or a system builder we offer special pricing on bulk orders of this product. Contact us at sales@quietpcusa.com or call Toll Free (877) 205-2020 for more information.
Noctua NF-P12 redux-1700 PWM Quiet Computer Cooling Fan Features
Proven NF-P12 design
Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctua's classic NF-P12. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-P12 has become an established reference for quiet 120mm fans.

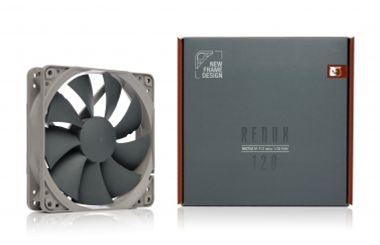

Streamlined redux edition
The redux product line reissues some of Noctua's most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua's reputation as a first-tier supplier of premium grade low noise cooling equipment.
Pressure-optimised Nine-Blade Design
Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P12's nine-blade impeller provides outstanding pressure and airflow performance.
Vortex-Control Notches

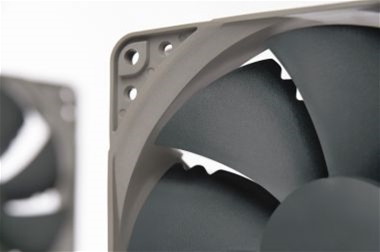

Noctua's signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan's noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear.
Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
Smooth Commutation Drive 2
The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.
The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.
SSO-Bearing
Combining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested technology has become synonymous with supremely quiet operation and exceptional long-term stability.
Combining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested technology has become synonymous with supremely quiet operation and exceptional long-term stability.
Optional accessories
CUsers can choose from Noctua's wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.
CUsers can choose from Noctua's wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.
Colour-customisable with NA-SAVP1 anti-vibration pads
The fan’s frame can be outfitted with Noctua’s chromax line NA-SAVP1 anti-vibration pads. Available in black, red, blue, white, green and yellow, these pads not only damp minute vibrations but also allow the fan to be colour-customised in order to coordinate it with popular build colour schemes!
The fan’s frame can be outfitted with Noctua’s chromax line NA-SAVP1 anti-vibration pads. Available in black, red, blue, white, green and yellow, these pads not only damp minute vibrations but also allow the fan to be colour-customised in order to coordinate it with popular build colour schemes!
6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTTF rating of more than 150.000 hours and come with a full 6-year manufacturer’s warranty.
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTTF rating of more than 150.000 hours and come with a full 6-year manufacturer’s warranty.
