Noctua NF-A12x15 PWM Chromax.Black.Swap Slim Computer Cooling Fan 120mm
*In stock.
Having received dozens of awards and recommendations from international hardware websites and magazines, the NF-A12x15 has established itself as a default choice when it comes to premium-quality slim 120mm fans. The chromax.black.swap edition combines the NF-A12x15’s signature quiet cooling performance with an attractive all-black design and a bundle of self-adhesive red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-12x15 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.
Noctua NF-A12x15 PWM Chromax.Black.Swap Specifications |
|
|---|---|
| Size | 120x120x15 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin hole configuration | 4-pin PWM |
| Cable length | 1cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade Geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Rotational Speed (+/- 10%) | 1850 RPM |
| Min. rotational speed @ 20% PWM (+/-20%) | 450 RPM |
| AirFlow | 94.2 m³/h |
| Acoustical Noise | 23.9 dB(A) |
| Static Pressure | 1.53 mm H2O |
| Input Power (typical) | 1.27 W |
| Input Power (maximum) | 1.56 W |
| Input Current (typical) | 0.11 A |
| Max. Input Current | 0.13 A |
| Operating Voltage | 12 V |
| Voltage PWM signal | 5 V |
| MTTF | >150,000 h |

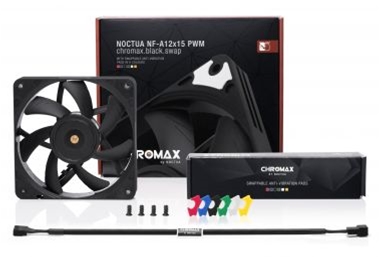

| Scope of delivery |
|
| Warranty | 6 years |
Additional Information:
For more detailed information, please visit Noctua’s website.
If you are a reseller or a system builder we offer special pricing on bulk orders of this product. Contact us at sales@quietpcusa.com or call Toll Free (877) 205-2020 for more information.
Noctua NF-A12x15 PWM Chromax.Black.Swap Slim Computer Cooling Fan Features
Award-winning NF-A12x15 design
Having received dozens of recommendations from the international press, Noctua’s NF-A12x15 has become a proven premium choice for slim 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
Having received dozens of recommendations from the international press, Noctua’s NF-A12x15 has become a proven premium choice for slim 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
chromax.black.swap edition
Maximising colour choices, the NF-A12x15 chromax.black.swap fan can be colour-customised using the included self-adhesive anti-vibration pads as well as optional coloured cables. This makes it ideal for enthusiasts looking for a true premium-grade fan that can be colour-coordinated with popular build themes such as all black, black & white or black & red.
Maximising colour choices, the NF-A12x15 chromax.black.swap fan can be colour-customised using the included self-adhesive anti-vibration pads as well as optional coloured cables. This makes it ideal for enthusiasts looking for a true premium-grade fan that can be colour-coordinated with popular build themes such as all black, black & white or black & red.

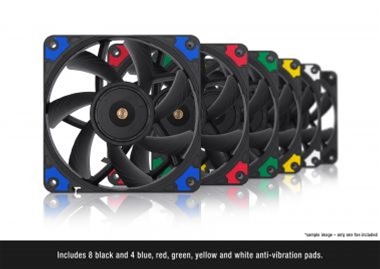

Self-adhesive anti-vibration pads in 6 colours

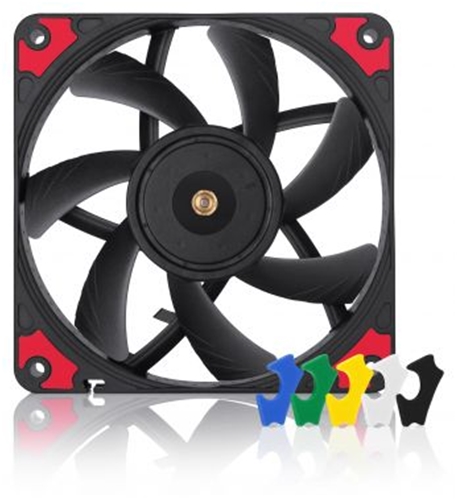

The NF-A12x15 PWM chromax.black.swap comes with 8 swappable, self-adhesive anti-vibration pads in black, white, red, blue, green and yellow respectively, which allow the fan to be fully colour-customised in order to coordinate it with other components or popular build schemes.
The NF-A12x15 PWM chromax.black.swap comes with 8 swappable, self-adhesive anti-vibration pads in black, white, red, blue, green and yellow respectively, which allow the fan to be fully colour-customised in order to coordinate it with other components or popular build schemes.
Optional coloured cables
Noctua’s chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately.
Noctua’s chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately.

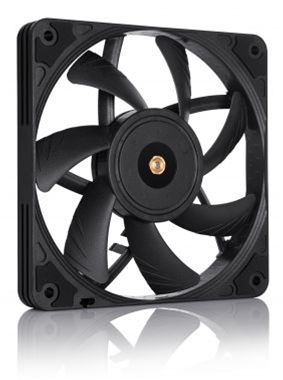

15mm slim design
Having a thickness of only 15mm, the NF-A12x15 is much slimmer than standard 120x25mm fans. This makes it ideal for typical slim fan applications such as low-profile CPU coolers as well as for freeing up space by replacing standard 120x25mm fans on tower coolers, radiators or in PC cases.
Having a thickness of only 15mm, the NF-A12x15 is much slimmer than standard 120x25mm fans. This makes it ideal for typical slim fan applications such as low-profile CPU coolers as well as for freeing up space by replacing standard 120x25mm fans on tower coolers, radiators or in PC cases.
Metal-reinforced motor hub
With many larger-diameter slim fan designs, the shorter axis and bearing lead to a reduced running stability and lifespan. The NF-A12x15 uses a metal-reinforced motor hub, a measure typically found in high-speed industrial fans, in order to guarantee Noctua’s signature stability and longevity.
With many larger-diameter slim fan designs, the shorter axis and bearing lead to a reduced running stability and lifespan. The NF-A12x15 uses a metal-reinforced motor hub, a measure typically found in high-speed industrial fans, in order to guarantee Noctua’s signature stability and longevity.
Flow Acceleration Channels
The NF-A12x15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
The NF-A12x15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

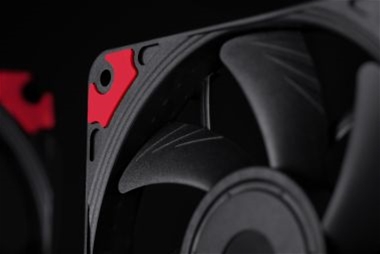

AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
SSO2 bearing
The NF-A12x15 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
The NF-A12x15 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
Stops at 0% PWM
When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.
When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.
6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTTF rating of more than 150.000 hours and come with a full 6-year manufacturer’s warranty.
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTTF rating of more than 150.000 hours and come with a full 6-year manufacturer’s warranty.
