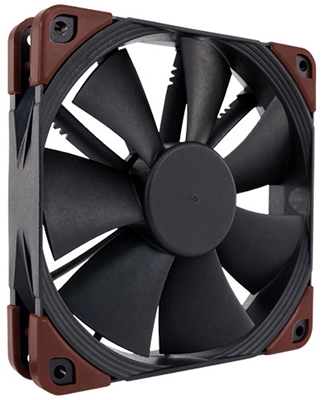

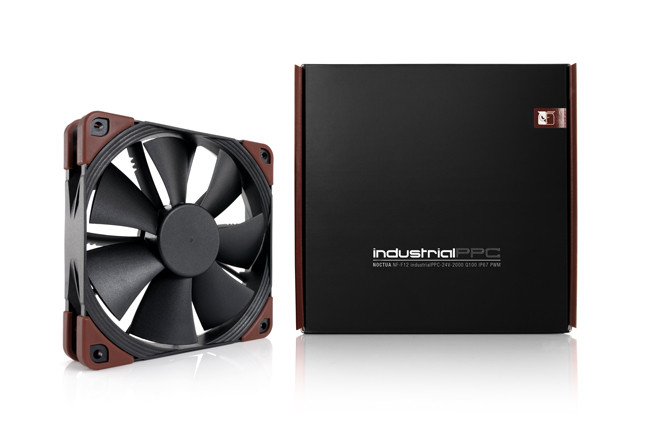

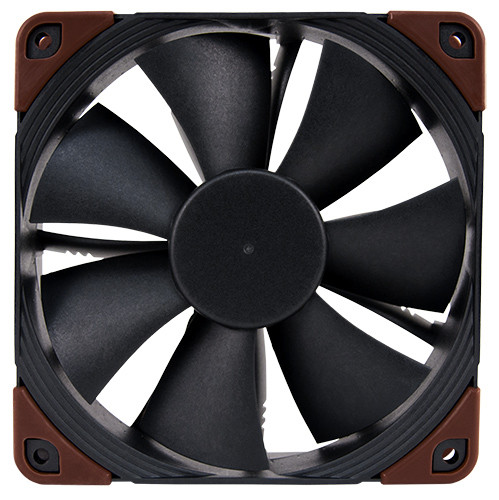

Noctua NF-F12 industrialPPC 24V 2000 SP IP67 PWM 120mm Fan
*In stock.
Conceived for
industrial heavy-duty applications that require enhanced cooling
performance and advanced ingress protection, the NF-F12 industrialPPC
(Protected Performance Cooling) is a ruggedised high-speed version of
the award-winning retail model. The 24V SP variant uses Noctua’s new
NE-FD5 high-efficiency single-phase motor driver IC in order to support
24V-based industrial and automotive applications. Its sophisticated
inrush current suppression and extreme electrical robustness with
extended burst and surge immunity allow it to operate safely in
sensitive or hostile electronic environments. Thanks to the outstanding
aerodynamic efficiency of the NF-F12 design and the high-performance
single-phase motor, the industrialPPC SP version provides superior
airflow and pressure capacity while keeping noise and power consumption
at a moderate level as against comparable high-speed fans. While its
fibre-glass reinforced polyamide construction and certified water and
dust protection make the NF-F12 industrialPPC suitable for operation in
challenging surroundings, the renowned SSO2
bearing technology guarantees an MTTF of over 150,000hrs. Topped off
with Noctua’s trusted reliability and 6-year manufacturer’s warranty,
the NF-F12 industrialPPC is an ideal choice for highly demanding
applications that require superior flow rates and ultimate
dependability.
Noctua NF-F12 industrialPPC 24V 2000 SP IP67 PWM Specifications |
|
|---|---|
| Size | 120x120x25mm |
| Mounting hole spacing | 105 x 105 mm |
| Connector & pin hole configuration | 4-Pin PWM |
| Cable length | 40cm |
| Bearing | SSO2 |
| Blade Geometry | HepaterfTM |
| Frame Technology | Focused FlowTM |
| Material | Fiberglass reinforced polyamide |
| Ingress Protection | IP67 |
| Material | Fiber-glass reinforced polyamide |
| Motor Type | Single-phase |
| Rotational Speed (+/- 10% | 2000 RPM |
| Min Rotational Speed (PWM +/- 20% | 450 RPM |
| Rotational Speed @ 12V +/- 10% | 1050 RPM |
| AirFlow | 121.8 m³/h |
| Acoustical Noise | 29.7 dB(A) |
| Static Pressure | 3.94 mm H2O |
| Max. Input Power | 1.68 W |
| Max. Input Current | 0.07 A |
| Voltage | 24 V |
| Voltage PWM signal | 5 V |
| MTTF | >150,000 h |
| Warranty | 6 years |
| Scope of delivery |
|
| Warranty | 6 years |
Additional Information:
For more detailed information, please visit Noctua’s website.
If you are a reseller or a system builder we offer special pricing on bulk orders of this product. Contact us at sales@quietpcusa.com or call Toll Free (877) 205-2020 for more information.
Noctua NF-F12 industrialPPC 24V 2000 SP IP67 PWM Features
Award-winning NF-F12 design
Having received more than 150 awards and recommendations from the international press, Noctua’s NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
Having received more than 150 awards and recommendations from the international press, Noctua’s NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
2000rpm industrialPPC version
Running twice as fast as the 1500rpm retail version, the NF-F12 industrialPPC-3000 PWM provides extreme airflow and pressure performance. Combined with the industrialPPC series' robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.
Running twice as fast as the 1500rpm retail version, the NF-F12 industrialPPC-3000 PWM provides extreme airflow and pressure performance. Combined with the industrialPPC series' robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.
24V SP version
The industrialPPC 24V SP models use Noctua's new NE-FD5 high-performance single-phase PWM motor driver IC. Thanks to its excellent commutation efficiency, the NE-FD5 enables the SP versions to achieve exactly the same performance as previous models with three-phase motors.
The industrialPPC 24V SP models use Noctua's new NE-FD5 high-performance single-phase PWM motor driver IC. Thanks to its excellent commutation efficiency, the NE-FD5 enables the SP versions to achieve exactly the same performance as previous models with three-phase motors.
Lower speed and noise levels in 12V PC environments
While the industrialPPC 24V model has been designed with 24V industrial applications in mind, it runs at a maximum speed of around 1100rpm in 12V PC environments and can be slowed down further via PWM, thus combining industrialPPC features and design with Noctua’s signature quietness.
While the industrialPPC 24V model has been designed with 24V industrial applications in mind, it runs at a maximum speed of around 1100rpm in 12V PC environments and can be slowed down further via PWM, thus combining industrialPPC features and design with Noctua’s signature quietness.
Fiber-glass reinforced polyamide construction
Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fiber-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fiber-glass reinforced PBT fans.
Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fiber-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fiber-glass reinforced PBT fans.
Certified IP67 water and dust protection
The motor and PCB of the IP67 version are completely cast in a special, highly heat conductive resin that combines thoroughgoing protection and effective motor heat dissipation. Complying with the ingress protection rating IP67, this fan is not only fully dust tight but also completely waterproof up to 1m water depth.
The motor and PCB of the IP67 version are completely cast in a special, highly heat conductive resin that combines thoroughgoing protection and effective motor heat dissipation. Complying with the ingress protection rating IP67, this fan is not only fully dust tight but also completely waterproof up to 1m water depth.
Focused Flow™ frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Stepped Inlet Design
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.
Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimize the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Integrated Anti-Vibration Pads made from extra-soft silicone minimize the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
SSO2 Bearing
The NF-F12 industrialPPC features the further optimized second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilization, precision and durability.
The NF-F12 industrialPPC features the further optimized second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilization, precision and durability.
