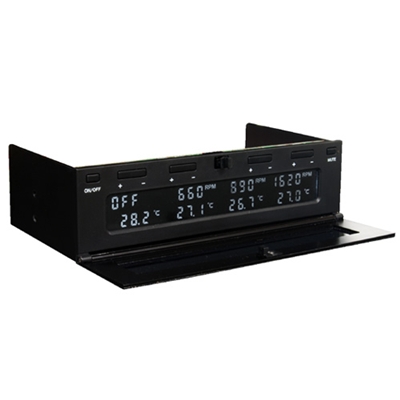

Scythe Kaze Master Flat Fan Controller
The Kaze Master Flat is a fan control unit featuring some neat original functions making it a little different from the competition: It's equipped with four channels for rpm and temperature display and is designed to fit into the 5.25 bay. Fitted with a modern front panel, an alarm function and a hinged display cover for protection, the package is rounded up with jumper switches for individual settings by the user. Even with closed cover, the displays of the LCD-panel are discreetly visible through the integrated window.
Scythe Kaze Master Flat Fan Controller Features
Liquid Crystal Display
The Kaze Master Flat's discreet LCD-display provides the user with information about the temperature and the rpms for each of the four fans. It's neatly arranged and can be switched off at the user's convenience.
Protective Display Cover
The front panel of the Kaze Master Flat protects its' display with a hinged cover which also prevents unintentionally touching the switches. The information displayed is cleary visible through the integrated window even in closed state.
Spin Up Voltage
The adjustable voltage range is between 3.7 to 12 volts. But as fans tend to have problems to "get going" in the lower ranges, this function ensures a 12 volt supply right from the start before settling down to the user's set, desired voltage.
Temperature Warning Function
By applying the dip-switch, the user is able to set the desired temperature for the alarm to go off. The values can be set between 55 (131 F) and 90 degrees (194 F) in 5-degree steps.
Jumper Switch for Personal Settings
For personal settings by each individual user, the Kaze Master Flat comes with two jumper switches - one for turning the alarm sound on/off, the other one for choosing between Celsius and Fahrenheit.
|Scythe Kaze Master Flat Fan Controller Specifications|
|Model Name:||Kaze Master Flat|
|Overall Dimensions (W x H x D):||148,5 x 42 x 83 mm / 5.8 x 1.6 x 3.26 in|
|Display Dimensions (W x H):||119.3 x 16 mm / 4.7 x 0.62 in|
|DC Input:||5 V or 12 V (From PC Power Supply)|
|DC Output:||3,7 V (±10%) ~ 12 V (±10%)|
|Fan Speed Range:||0 - 9990 upm|
|Temperature Channels:||4 (0 - 100°C / 32 - 199,9°F)|
|Accessory:||4x Temperature Sensor Cables, 4x Fan Cables, 1x Power Cable, 4x Mounting Screws, Installation Manual|
